GVL65100 Gate valve lockout, openable

Name: GVL65100 Gate valve lockout, openable
SKU: GVL65100
Price: 19533 HUF
Availability: InStock

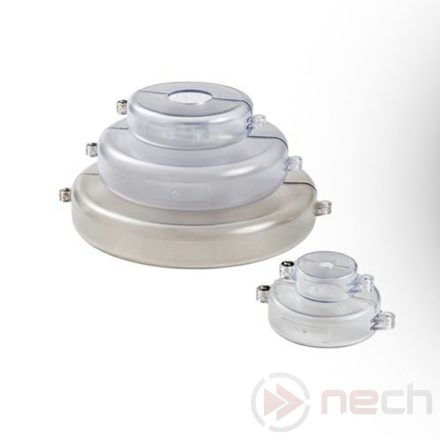

NECH GVL65100 safety gate valve lockout, openable, transparent.

The GVL type is a traditional older designed gate valve lockout what is from two equal semicircles. One half of it is fixed with a pin and the other half can lockout with a standard LOTO padlock.

The valve is made of ABS engineering plastic, which provides heat resistance, crack resistance, impact resistance and explosion resistance up to -46°C - 183°C.

Usable LOTO padlock shackel diameter: ≤7mm.

Product versions:
GVL1025: 25 - 64 mm / 1"-2,5"
GVL2550: 64 - 127 mm / 2",5-5"
GVL5065: 127 - 165 mm / 5"-6,5"
GVL65100: 165 - 254 mm / 6,5"-10"
GVL100130: 254 - 330 mm / 10"-13"

Available for order

If out of stock, the expected delivery time is 2-6 working weeks

15 380 Ft (Excl. VAT)

Info

Application size

165 – 254 mm

Application size (imperial)

6.5 – 10 inch

Article No.

GVL65100
