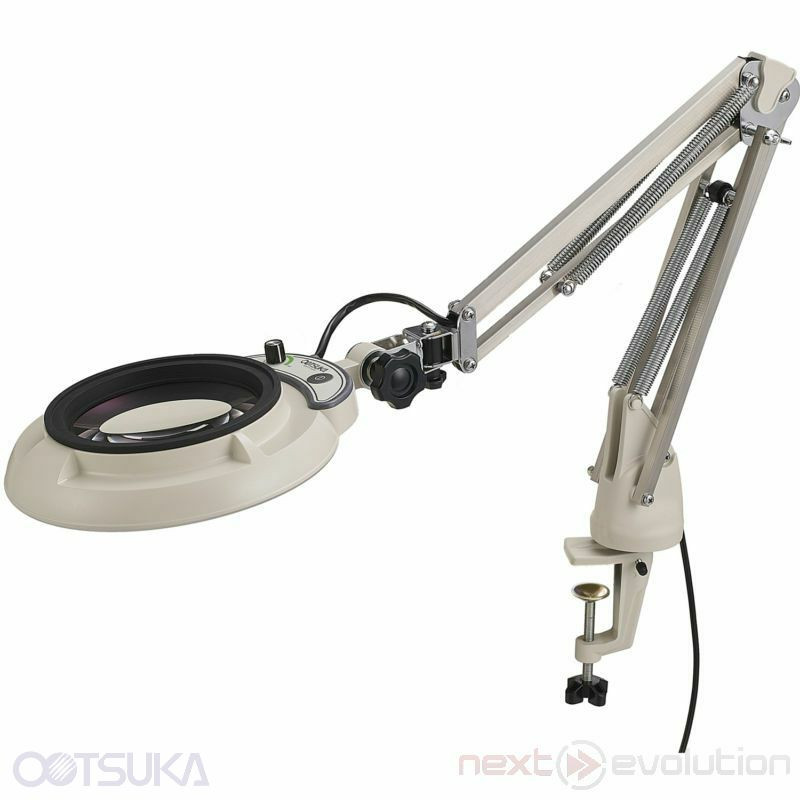

OTSUKA OPTICS ENVL-CF dimmable compact swing arm illuminated magnifier

The OTSUKA OPTICS model ENVL-CF is a compact size, countertop-mounted swing arm illuminated magnifier with adjustable light intensity.

The newly designed LED illumination results in high colour rendering (Ra≧90) and low thermal output. The flat design of the magnifier reduces the reflection of the LED light, thus improving the working efficiency.

The on/off switch is located on top of the magnifier for easy operation.

The redesigned mounting bracket also improves working efficiency. Moving the magnifying glass is easier and simpler and requires less space.

Available for order

Info

Article No.

ENVL-CF

Features of the magnifying lamp

Magnification: 2X-15X
Light source: Premium quality white LED (CRI≧90) with protective cladding for proper light diffusion
Input voltage: 100～240V: 50/60 Hz
Power consumption: 7W
Brightness control (dimming): Yes / Between 10-100%
Weight (Kg): 1.8 kg (without magnifying lens and AC adapter)
AC Adapter: size: 96×44×29 mm (without cables), weight: 0.3 kg (with cables)
Operating temperature range: 5℃～35℃
Dust and water resistance: IP20 (indoor use only)

Features of the magnifying lens

	2X	3X	4X	6X	8X	10X	12X	15X
Area magnification:	2X	3X	4X	6X	8X	10X	12X	15X
Line magnification:	1.4X	1.7X	2X	2.4X	2.8X	3.1X	3.4X	3.8X
Magnifier lens diameter (mm):	ø130	ø130	ø130	ø105	ø90	ø90	ø90	ø90
Eyepoint/distance between the eye and lens (mm):	150	150	150	100	105	80	80	65
Working distance / distance between the lens and the object (mm)	160	130	110	82	54	43	35	30
Test area diameter (mm):	ø170	ø140	ø120	ø70	ø40	ø40	ø40	ø30
Lens material:	Optical glass
Weight (g):	400	500	700	570	1300	1350	1350	1560
AR coating (anti-reflective) polarised coating:	Available for an extra charge (not included in the basic price)						Not available
