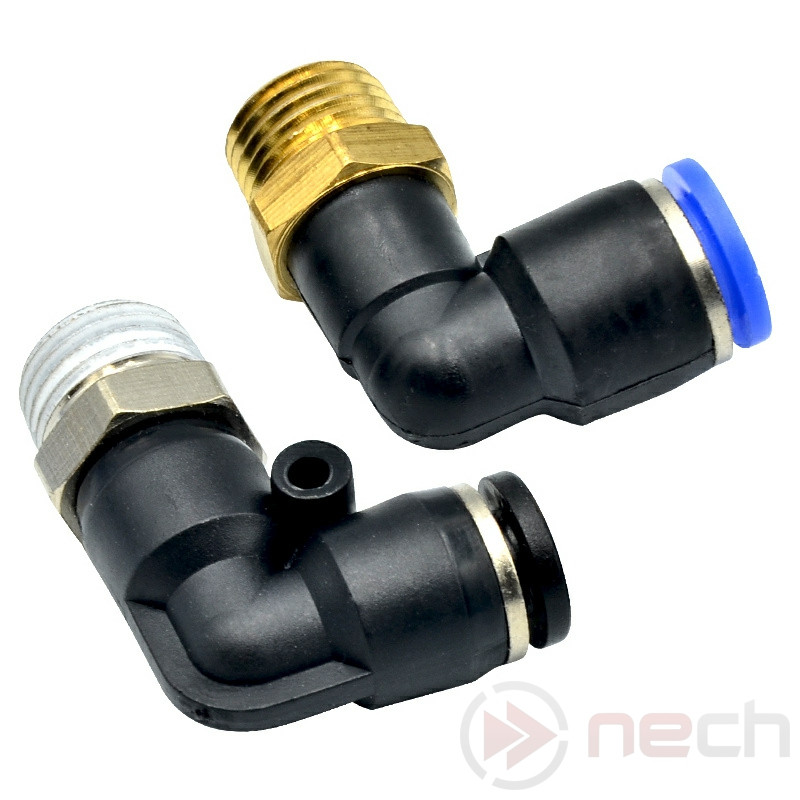

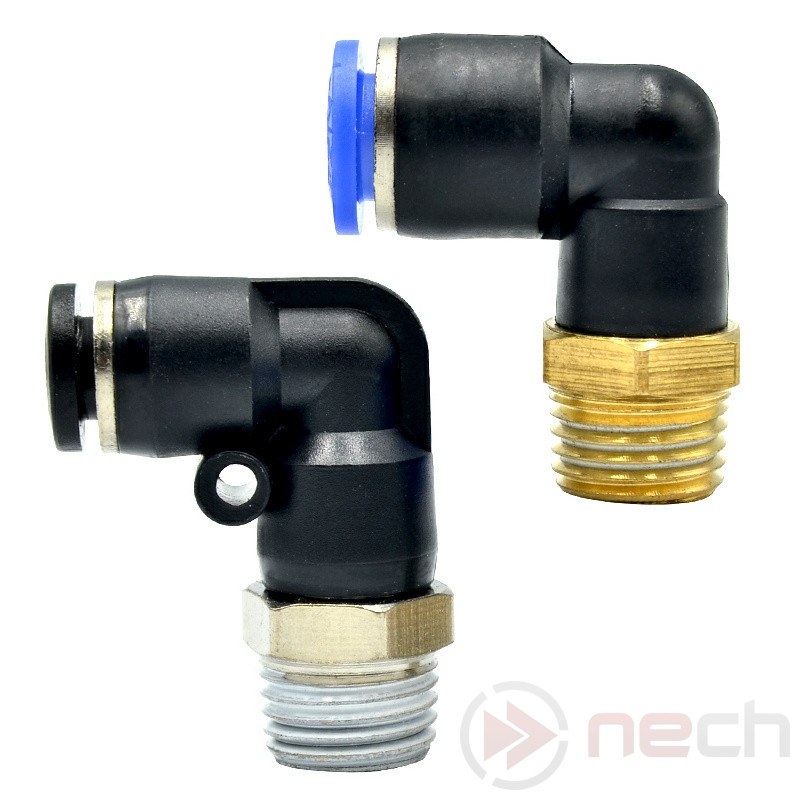

Ø6 mm elbow push-in quick connector with R3/8" thread.

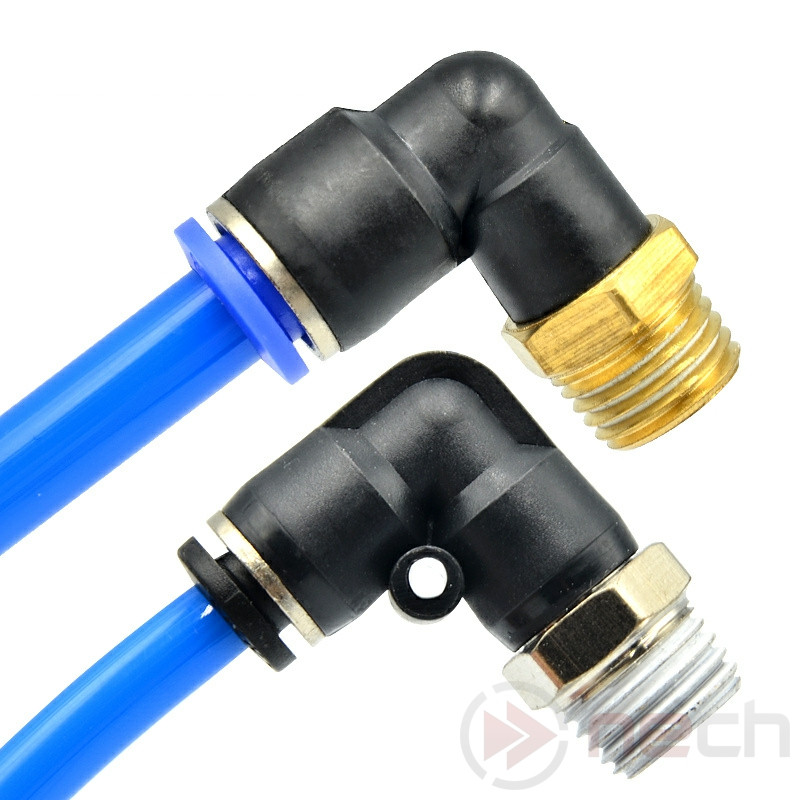

The PL6-03 90° connector is used for the right-angle connection of a plastic or teflon tube with an external diameter of 6 mm and a pneumatic receiving system element with an internal diameter of 3/8". The push-in system release ring facilitates easy connection or disconnection of the tubing by hand - no special tools are required to connect the tubing.

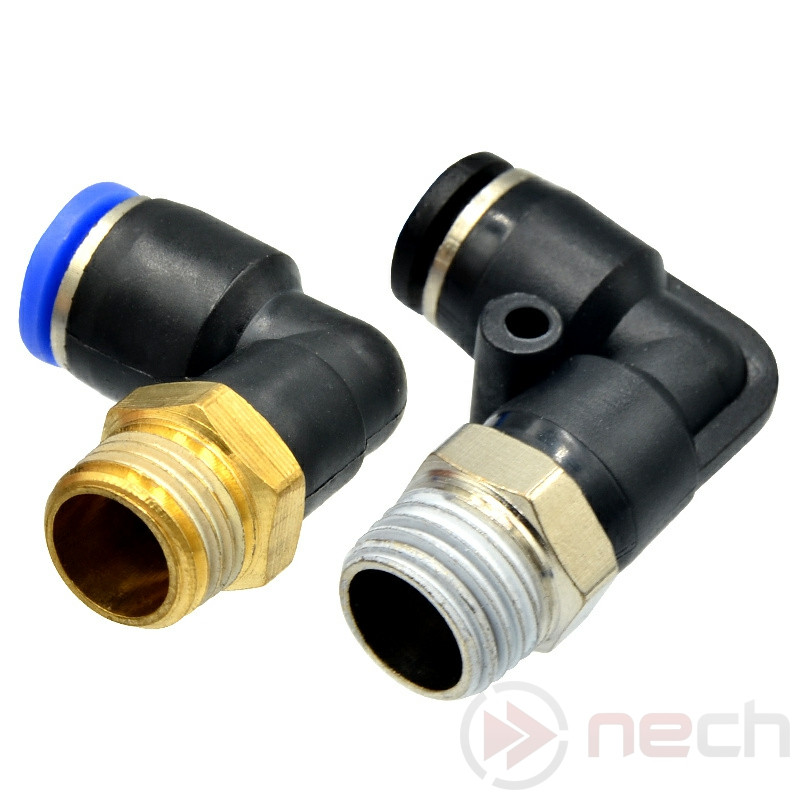

The counter-side of the coupling has a brass threaded body with an external hexagon, so that the coupling can be easily adjusted to the desired position after tightening using a wrench.
The PL6-03 right angle quick coupling has a pre-coated teflon thread seal, so it arrives ready for immediate installation.
Operating medium: compressed air, vacuum
Maximum pressure: 10 bar
Operating temperature: 0°C to +60°C
Thread standards: R, PT, BSPT
