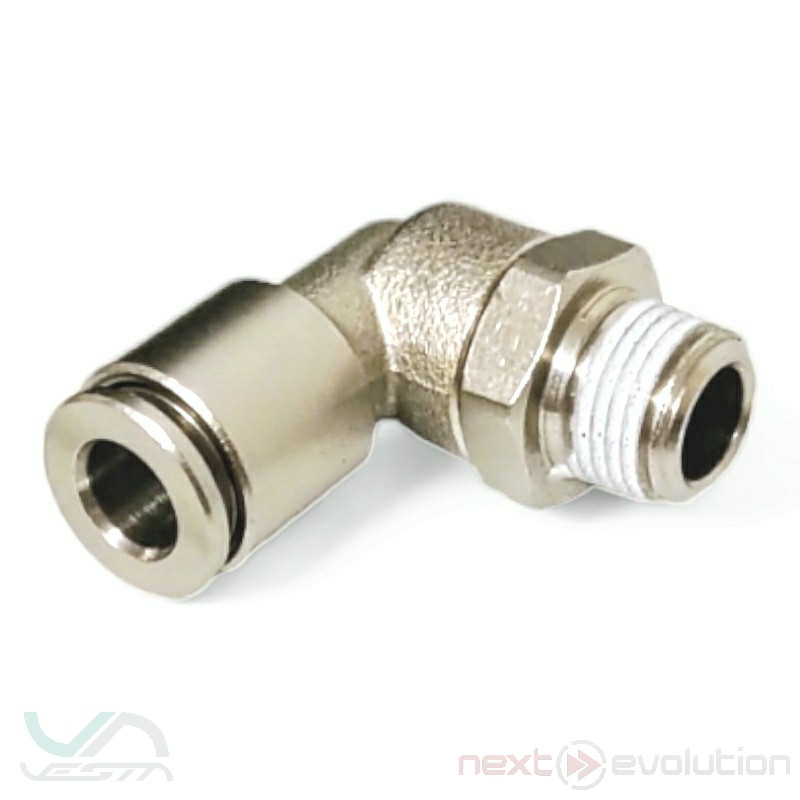

QB LC 06 18 / Ø6 mm 90° elbow push-in quick connector with R1/8" thread, nickel plated brass

Ø6 mm elbow push-in quick connector with R1/8" thread made of nickel-plated brass.

The QB LC 06 18 90° connector is used for the right-angle connection of a plastic or Teflon air tube with an outer diameter of 6 mm and a pneumatic receiving system element with an inner diameter of 1/8". The push-in system release ring facilitates easy connection or disconnection of the tubes by hand - no special tools are required to connect the tubes.
The mating side of the connector has a nickel-plated brass threaded body with an external hexagon, so that the connector can be easily adjusted to the desired position after tightening using a wrench.
The QB LC 06 18 right angle quick coupling has a pre-coated Teflon thread seal so it arrives ready for immediate installation.

Operating medium: compressed air, vacuum
Operating pressure: 0-10 bar
Maximum pressure: 12 bar
Vacuum: -1 bar
Operating temperature: -20°C to +80°C
Thread standards: R, PT, BSPT
